FAST SELECTION

Developing History of Hautek SBM Machines

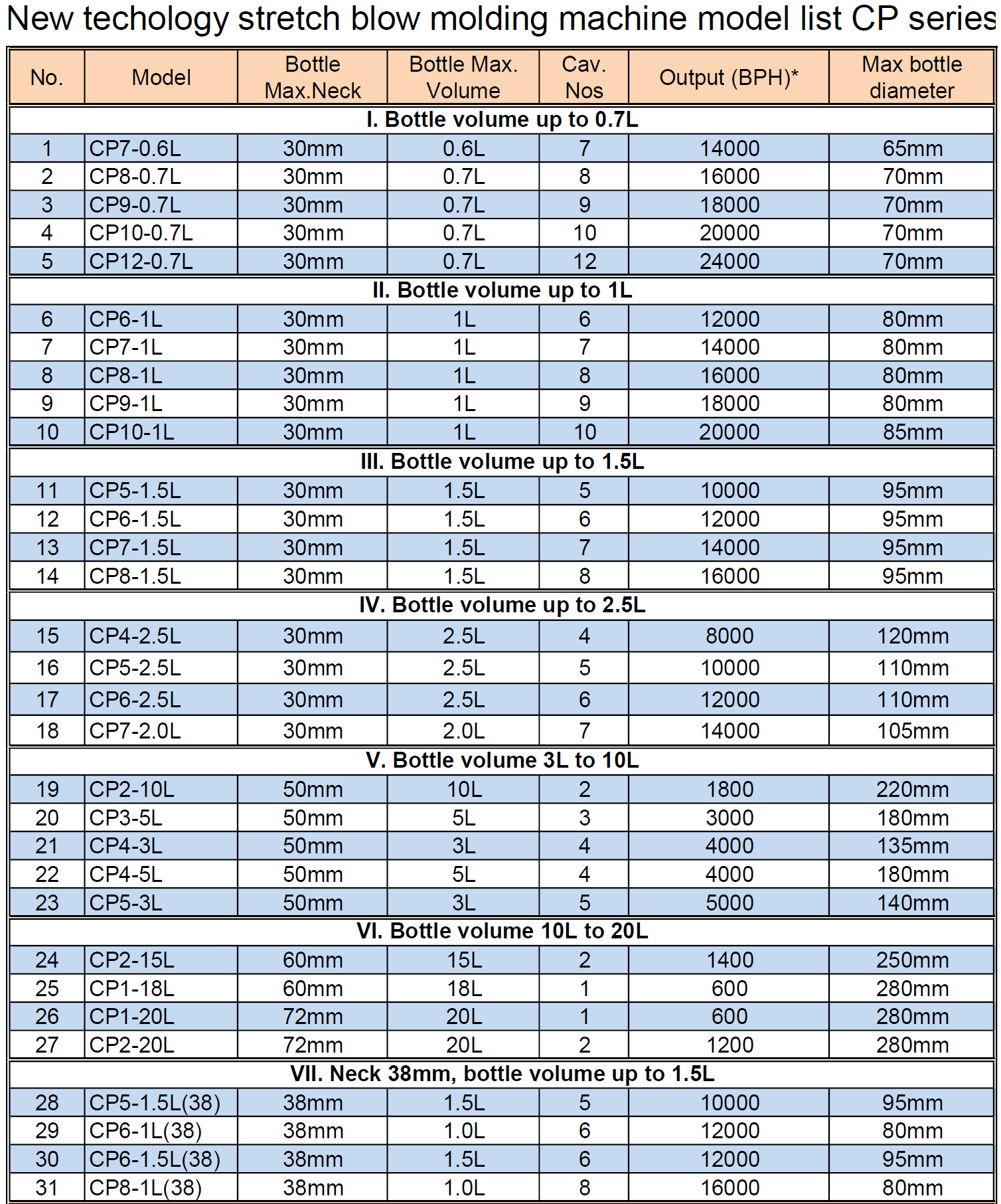

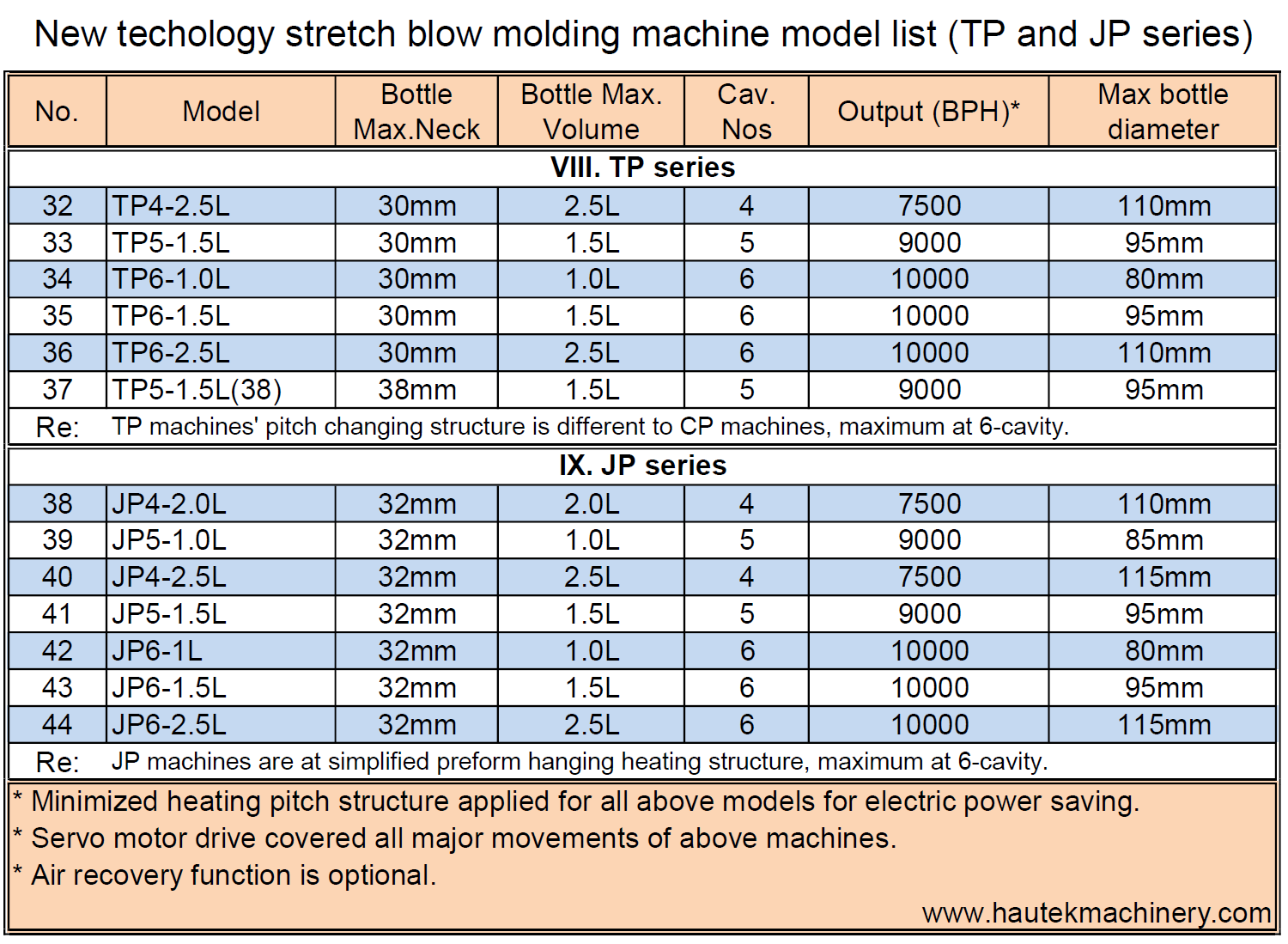

How to choose a proper model stretch blow molding machine? If you are not so sure to select a proper model, please take a quick look at our developing history of stretch blow molding machines and general view of model list at the end of this page. As we started in 1998, our development history also reflects the development history of the PET linear blow molding machine industry in China.

Generation 1 (G1)

Main Feature: Preform feeding and bottle taking out by manual;

 : 1980~1990 Semi-Automatic blow machine,Manual blower + heating oven

Generation 2 (G2)

: 1990~Now Semi-Automatic blow machine, Manual blower + IR rotary preheater

Main Feature: Preform feeding and bottle taking out by manual;

Generation 5 (G5)

Generation 4 (G4)

Generation 3(G3)

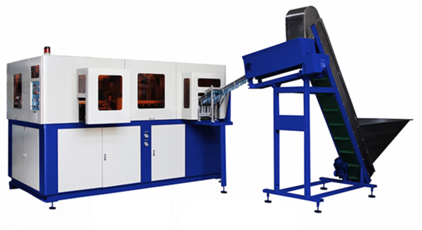

:  2010~now Regular automatic PET blow machine (AL2000E-AL6000SE series)

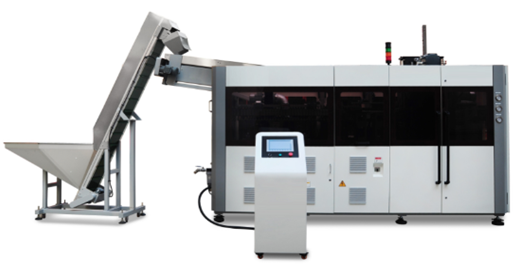

: 2018~now New technology PET blowing machine (CP series)

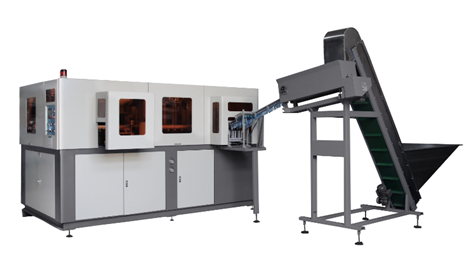

: 2000~now Regular automatic PET blow machine (AL2000-AL6000S series)

Main Features:

 1. Preform feeding and bottle taking out automatically by pneumatic clampers.

 2. All pneumatic, the preform holder heating pitch same as cavity pitch (cavity center distance).

♥ ♥ Recommend by Hautek ♥ ♥

 Main Feature: Same to G3, but adopt servo motors instead of pneumatic cylinders.

Main Feature:

1. Minimized heating pitch effectively uses heating power, compared regular blowing machine

 energy saving over 50%.

 Take an example of CP-6, for 12,000BPH output, each day 10hours production,

 compared with regular machine, it can save power cost over 20000USD each year.

 2. Servo motors covers all major movements and avoid a lot of pneumatic part maintenance.

 3. Machine with compact size. etc.

♥ ♥ Recommend by Hautek ♥ ♥
